24KV Embedded Poles

Sunway Hanguang's 24KV Embedded Poles leverage the technological expertise accumulated since Sunway Hanguang's founding in 1968, integrating independently optimized primary sealing processes and full-process quality control into production. As a professional manufacturer, it uses APG technology to encapsulate core components such as vacuum interrupters, forming a fully enclosed, fully insulated, and fully shielded modular structure with mature technology and stable performance.

The 24KV Embedded Poles are compatible with 24kV AC systems and various mainstream switchgear types, serving a wide range of fields including power and new energy, and are exported to many parts of the world, demonstrating Sunway Hanguang's global competitiveness as a high-quality supplier.

Core Product Features

1. Excellent Craftsmanship and Superior Insulation

The 24KV Embedded Poles utilize vacuum casting + APG technology, with epoxy resin and special fillers for molding, resulting in no bubbles or cracks and high density. The built-in equalizing shielding ring optimizes the electric field, with partial discharge ≤5pC, and can pass rigorous tests such as pollution and salt spray, meeting the Class IV pollution level, completely avoiding creepage and flashover risks.

2. Robust Structure and Long Lifespan

The epoxy composite structure has a bending strength of ≥20kN and a tensile strength of ≥15kN, resistant to short-circuit impact and vibration, and complies with IEC vibration standards. It features a built-in high-purity Cu-Cr contact vacuum interrupter with a vacuum degree of ≤1.33×10⁻³Pa, a mechanical life of over 1 million cycles, and a record of over 15 years of trouble-free operation.

3. Maintenance-Free, Reduced Operation and Maintenance Costs

The fully enclosed structure isolates external interference, ensuring 30 years of maintenance-free operation under normal use, reducing operation and maintenance costs by over 85%. The modular design supports convenient installation and replacement, facilitating rapid on-site maintenance and improving system availability.

4. Environmentally Friendly and Compliant, Smart Expandability

No oil or SF6 emissions, complying with environmental standards and carbon neutrality goals. Multiple sensor interfaces are reserved, supporting mainstream communication protocols, allowing seamless integration into operation and maintenance platforms to meet intelligent power distribution monitoring needs.

5. Full Process Quality Control, Traceable Quality

Based on our own factory's advanced equipment, each product undergoes 18 comprehensive factory inspections, generating a unique, traceable electronic file. A 10-year limited warranty is provided, guaranteeing insulation performance degradation ≤10% and stable vacuum degree.

6. Wide Compatibility, Strong Adaptability

Can directly replace original poles from brands such as ABB, Siemens, and Schneider, supporting OEM/ODM customization, and is compatible with various medium-voltage switchgear, meeting both new installation and retrofit needs.

Product Parameters

Product Application Scenarios

1. Power Systems

Applied in power distribution network projects and substation renovations for companies such as State Grid and Huaneng, meeting the stringent insulation and stability requirements in areas with altitudes >3000 meters.

2. New Energy Field

Our 24KV Embedded Poles are suitable for grid-connected switches and energy storage equipment in wind and solar power plants, withstanding extreme outdoor temperatures and strong electromagnetic interference, contributing to the development of the new energy industry.

3. Marine and Coastal Scenarios

Suitable for offshore wind power, oil drilling platforms, and coastal chemical plants, resistant to corrosion and condensation, and can operate stably for extended periods in high-salt spray environments.

4. Industrial Scenarios

Suitable for highly polluted environments such as mines and metallurgy, serving companies such as Baowu Steel and Sinopec, meeting the needs of frequent operation and low maintenance costs.

5. Rail Transit

Used in traction substation equipment, resistant to strong vibrations and wide temperature ranges, providing reliable support for railway and urban rail transit power supply systems.

6. Infrastructure

As a fast switching unit for data center power distribution, it is suitable for ring network cabinet upgrades and can be integrated into intelligent monitoring and digital twin systems, contributing to the construction of intelligent power distribution networks.

7. Overseas and Alternative Scenarios

Compatible with global power grid standards, it has been applied in projects in Europe, the Middle East, and other regions. It can directly replace imported brand pole-mounted equipment and is suitable for overseas and retrofit applications.

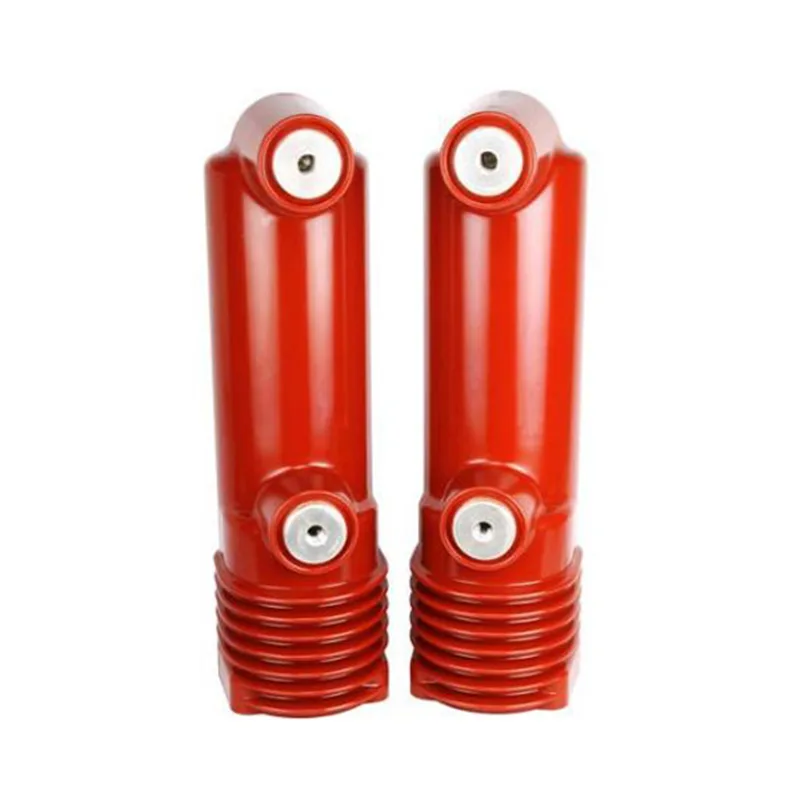

EP24-1250-25A

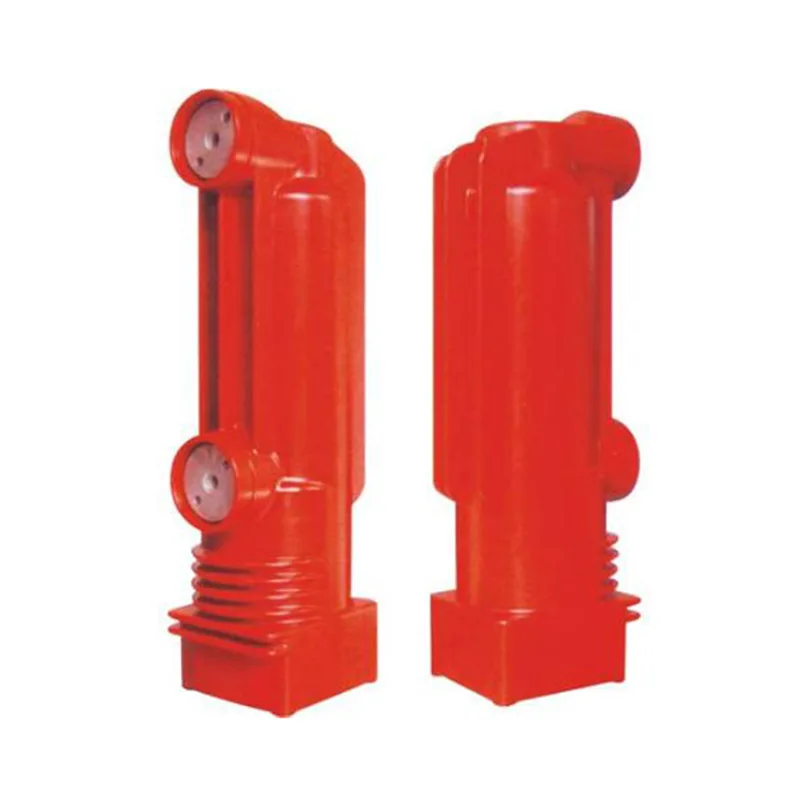

EP24-1250-31.5A

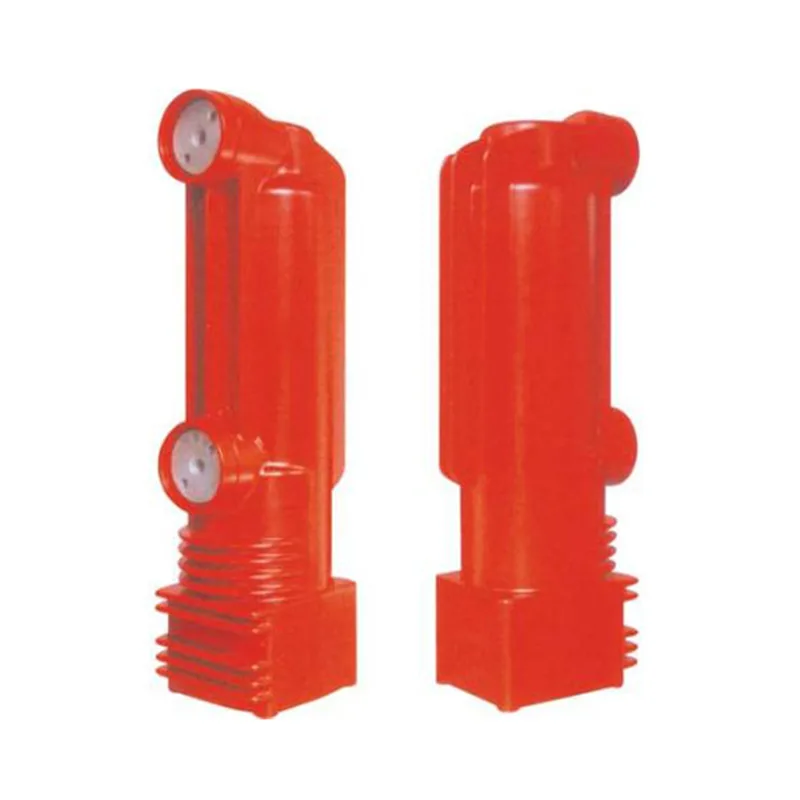

EP24-2000-31.5A

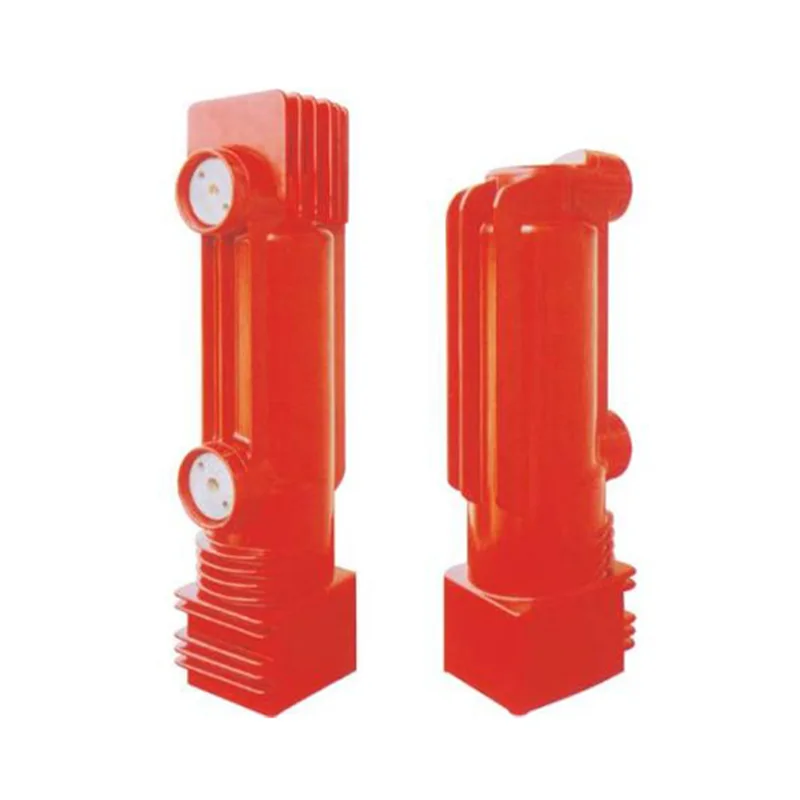

EP24-2500-31.6A

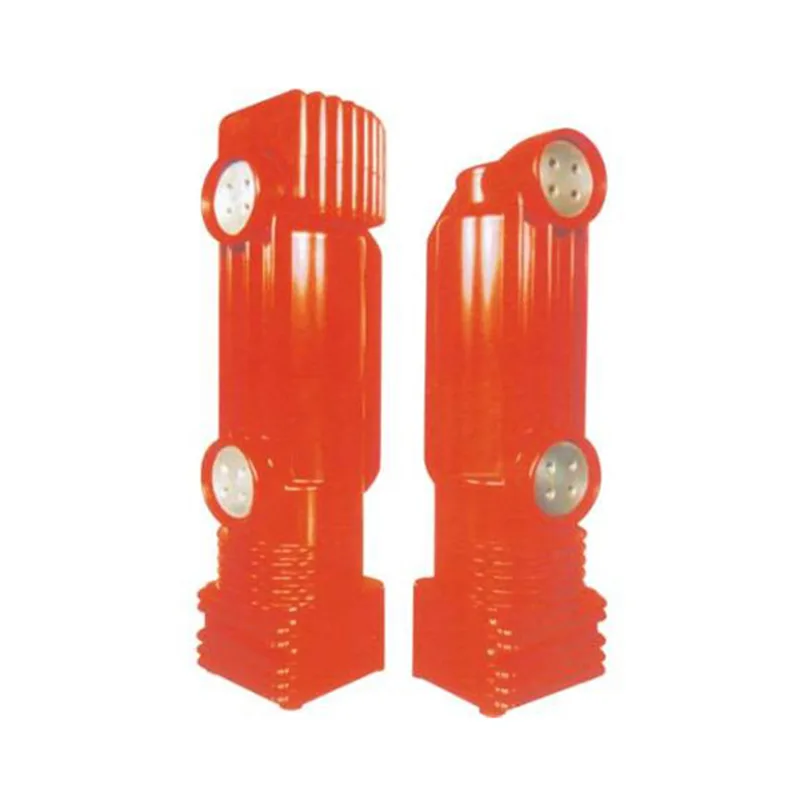

EP24-3150-31.5A
