What Is Vacuum Interrupter For Generation VCB and Its Role in Modern Power Systems?

Table of Contents

• 1. Introduction to Vacuum Interrupter in VCB
• 2. How Vacuum Interrupters Work
• 3. Why Vacuum Interrupters Matter in Generation VCB
• 4. Internal Structure and Materials
• 5. Key Advantages of Vacuum Interrupters
• 6. Vacuum Interrupter vs Other Arc Extinguishing Technologies
• 7. Applications in Power Systems
• 8. How to Choose the Right Vacuum Interrupter
• 9. Maintenance and Lifespan Considerations
• 10. Technical Comparison Table
• 11. Common Industry Challenges and Solutions
• 12. Frequently Asked Questions
• 13. Conclusion and Professional Support

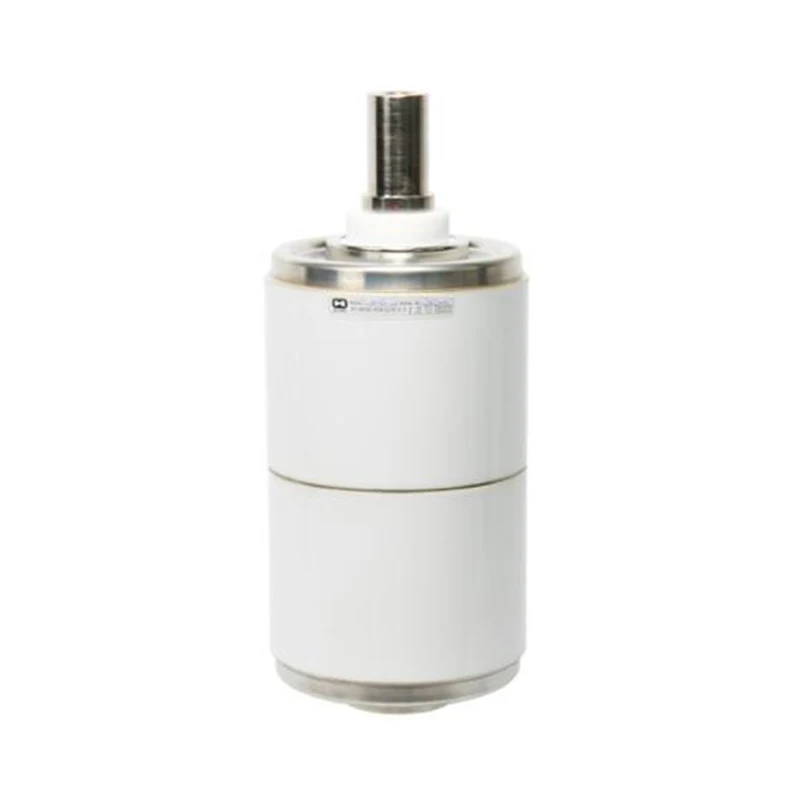

1. Introduction to Vacuum Interrupter in VCB

A Vacuum Circuit Breaker (VCB) is widely used in medium-voltage electrical systems to protect networks from overloads and short circuits. At the heart of this device lies the vacuum interrupter, a sealed component responsible for extinguishing electrical arcs when the circuit is interrupted.

In generation-level power distribution systems, reliability is not optional—it is mandatory. The vacuum interrupter ensures that when fault currents occur, the arc is rapidly extinguished inside a vacuum chamber, preventing damage to equipment and ensuring uninterrupted system protection.

Companies like Sunway Hanguang Electric Manufacturing Limited Co., Ltd. specialize in producing high-performance vacuum interrupters designed for modern VCB systems, ensuring long service life and superior dielectric strength.

2. How Vacuum Interrupters Work

The working principle of a vacuum interrupter is based on arc extinction in a high-vacuum environment. When the circuit breaker contacts separate during a fault condition, an arc is formed. However, due to the absence of ionizable gases in the vacuum chamber, the arc is quickly extinguished.

• Contact separation: When fault current is detected, contacts inside the interrupter open.
• Arc formation: A plasma arc is generated between the separating contacts.
• Vacuum extinction: The vacuum environment prevents sustained ionization.
• Rapid recovery: Dielectric strength recovers almost instantly.

This process happens within milliseconds, making vacuum interrupters highly efficient for modern electrical protection systems.

3. Why Vacuum Interrupters Matter in Generation VCB

The importance of vacuum interrupters in generation VCB systems cannot be overstated. They ensure system stability, protect expensive infrastructure, and minimize downtime in power distribution networks.

• They prevent catastrophic equipment failure during faults.
• They enable compact circuit breaker design.
• They reduce maintenance requirements significantly.
• They enhance system safety for operators and engineers.

In industrial environments, especially power plants and substations, vacuum interrupters ensure continuous and reliable operation, which directly impacts productivity and safety.

4. Internal Structure and Materials

A vacuum interrupter is a highly engineered component composed of several precision parts:

• Contacts: Usually made of copper-chromium alloy for high conductivity and arc resistance.
• Ceramic housing: Provides insulation and mechanical strength.
• Metal bellows: Allows contact movement while maintaining vacuum integrity.
• Shielding system: Prevents metal vapor deposition on insulation surfaces.

Sunway Hanguang Electric Manufacturing Limited Co., Ltd. uses advanced vacuum sealing technology and high-grade materials to ensure consistent performance across various voltage ratings.

5. Key Advantages of Vacuum Interrupters

Vacuum interrupters provide multiple operational benefits that make them the preferred choice in modern VCB systems.

• High dielectric strength after arc extinction
• Minimal contact erosion
• Long operational lifespan
• Environmentally friendly (no gas emissions)
• Compact and lightweight design

These advantages significantly reduce total lifecycle cost and improve system efficiency in power distribution networks.

6. Vacuum Interrupter vs Other Arc Extinguishing Technologies

Compared to oil and SF6-based interrupters, vacuum interrupters provide a cleaner and more efficient solution.

• Oil interrupters: Require frequent maintenance and pose fire risks.
• SF6 interrupters: High insulation but environmentally harmful.
• Vacuum interrupters: Safe, clean, and highly durable.

This comparison clearly shows why vacuum technology is now the industry standard for modern VCB systems.

7. Applications in Power Systems

Vacuum interrupters are widely used in various industries and power systems:

• Power generation plants
• Industrial manufacturing facilities
• Railway electrification systems
• Renewable energy systems (solar and wind)
• Commercial building power distribution

Sunway Hanguang Electric Manufacturing Limited Co., Ltd. supplies vacuum interrupters suitable for all these applications, ensuring stable performance even under extreme electrical conditions.

8. How to Choose the Right Vacuum Interrupter

Selecting the right vacuum interrupter for generation VCB requires careful evaluation of technical parameters:

• Rated voltage and current capacity
• Short-circuit breaking capability
• Mechanical endurance
• Insulation performance
• Manufacturer reliability

Working with experienced manufacturers such as Sunway Hanguang Electric Manufacturing Limited Co., Ltd. ensures that all technical specifications are met with high precision and reliability.

9. Maintenance and Lifespan Considerations

One of the major advantages of vacuum interrupters is their low maintenance requirement. However, periodic inspection is still recommended.

• Check mechanical operation of breaker contacts
• Monitor contact wear over time
• Perform insulation resistance testing
• Inspect for vacuum integrity failure indicators

High-quality interrupters from Sunway Hanguang Electric Manufacturing Limited Co., Ltd. can often exceed 20,000 mechanical operations without significant degradation.

10. Technical Comparison Table

11. Common Industry Challenges and Solutions

Despite their advantages, vacuum interrupters may face certain operational challenges:

• Contact erosion: mitigated by advanced alloy materials
• Vacuum loss: prevented by high-quality sealing techniques
• Mechanical fatigue: improved through precision engineering

Manufacturers like Sunway Hanguang Electric Manufacturing Limited Co., Ltd. continuously invest in R&D to overcome these challenges and enhance product durability.

12. Frequently Asked Questions

Q1: What is the main function of a vacuum interrupter?
It is used to extinguish electrical arcs during circuit interruption in VCB systems.

Q2: How long does a vacuum interrupter last?
Typically, high-quality units can last for tens of thousands of operations.

Q3: Is vacuum technology better than SF6?
Yes, vacuum technology is more environmentally friendly and requires less maintenance.

Q4: Can vacuum interrupters be repaired?
Generally, they are sealed units and replaced rather than repaired.

Q5: Why choose Sunway Hanguang Electric Manufacturing Limited Co., Ltd.?
Because of its proven expertise, stable quality control, and advanced manufacturing capabilities in vacuum interrupter production.

13. Conclusion and Professional Support

Vacuum interrupters are indispensable components in modern generation VCB systems, ensuring safe, reliable, and efficient electrical power distribution. Their superior arc-quenching capability, long lifespan, and environmental advantages make them the preferred solution across industries worldwide.

For organizations seeking high-performance and durable vacuum interrupters, Sunway Hanguang Electric Manufacturing Limited Co., Ltd. provides industry-grade solutions backed by engineering expertise and strict quality control.

If you are looking to upgrade your electrical systems or require customized vacuum interrupter solutions, contact us today. Our professional team is ready to support your project with reliable products and technical consultation to ensure long-term operational success.
